ART OF NOISE · TOURING CASE SYSTEM
Road Vault Touring Case
Built for musicians who move their rigs often. Road Vault is the heavy-duty counterpart to our boutique CaseMate range: reinforced, serviceable and designed around touring use rather than occasional transport.
Built differently
Touring frame
Black aluminium edge profiles and tongue-and-groove framing reinforce the case perimeter and keep the lid aligned in transit.
Recessed hardware
Recessed latches and carrying hardware stay protected from knocks. Metal corners and hardware are finished in black for a consistent, low-profile touring look.
Lift-off lid
Medium lift-off hinges let the lid come away completely once opened, leaving the pedalboard accessible without a lid hanging behind the rig.
Specifications
| Product | Heavy-duty pedalboard touring case |
|---|---|
| Exterior finish | Textured PVC laminate · Black or Red |
| Frame | Black aluminium edge and tongue-and-groove profiles |
| Corners | Metal ball corners, black finish |
| Latches | Recessed touring latches, black finish |
| Hinges | Lift-off hinges for a removable lid |
| Handle | Recessed sprung carrying handle, black finish |
| Interior | Closed-cell protective foam, selected to suit the case geometry |
| External case-body dimensions | 54 × 34 × 21.8 cm · 64 × 34 × 21.8 cm · 74 × 39 × 21.8 cm (by quotation) · 74 × 44 × 21.8 cm · 89 × 44 × 21.8 cm (L × W × H) |
| Fits our pedalboards | 50 × 30 cm · 60 × 30 cm · 70 × 35 cm · 70 × 40 cm · 85 × 40 cm |
| Custom dimensions | Available for other pedalboards and custom rigs |
Black hardware. Two finishes.
Every piece of hardware is black: frame, corners, latches, hinges and handle. Choose the exterior laminate in Black or Red.
Mobility Package
Add rear-mounted casters if the case needs to roll between stages, vehicles and rehearsal spaces. The mobility option is supplied and installed as part of the build.
Rear Casters + Extra Recessed Handle · +€75
Recommended for the 74 × 44 × 21.8 cm and 89 × 44 × 21.8 cm cases, matched to our 70 × 40 cm and 85 × 40 cm pedalboards. Includes two rear edge casters plus an additional recessed handle, so the case can be tilted and rolled without changing the basic touring-case structure.
Rear Casters + Telescopic Pull Handle · +€109
Recommended for the 54 × 34 × 21.8 cm and 64 × 34 × 21.8 cm cases, matched to our 50 × 30 cm and 60 × 30 cm pedalboards. Includes two rear edge casters plus a recessed telescopic luggage-style pull handle for easier movement through airports, venues and loading areas.
Not needed? Choose the standard carry configuration and the Road Vault is supplied without mobility hardware.
Sizes & fit

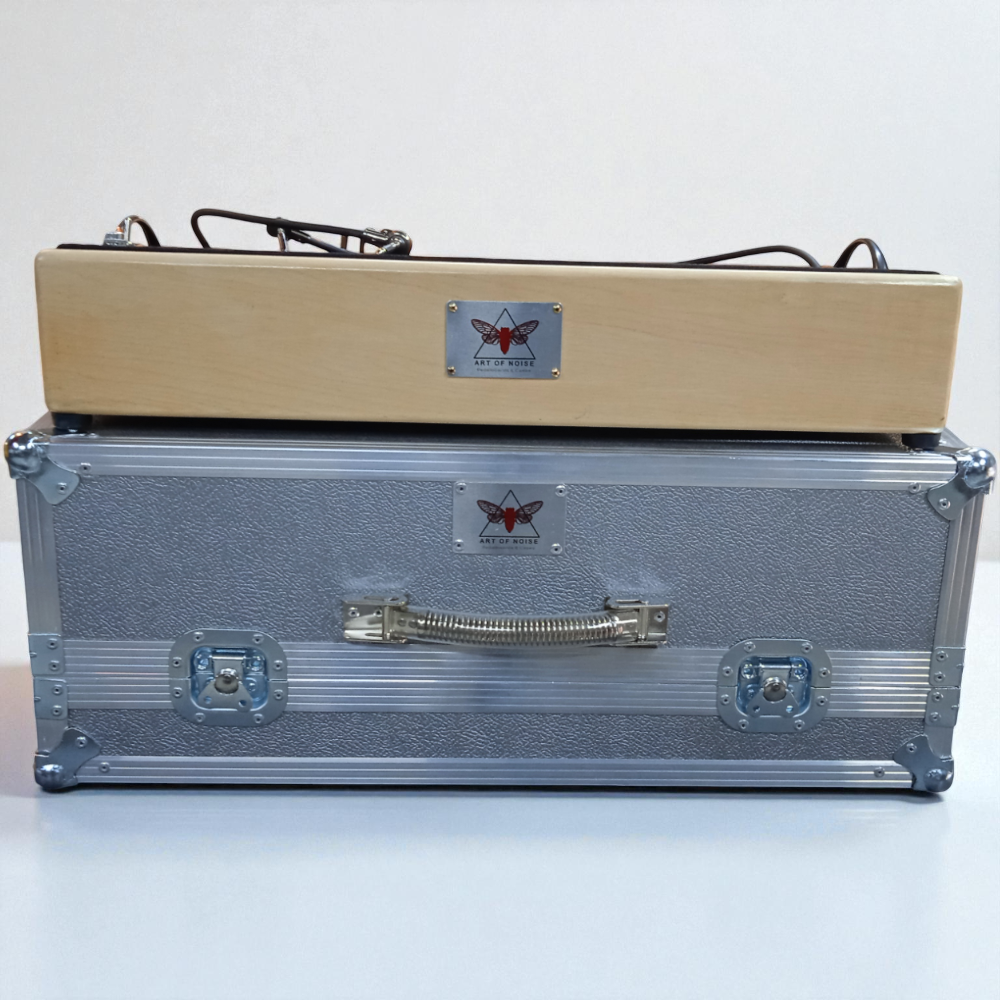

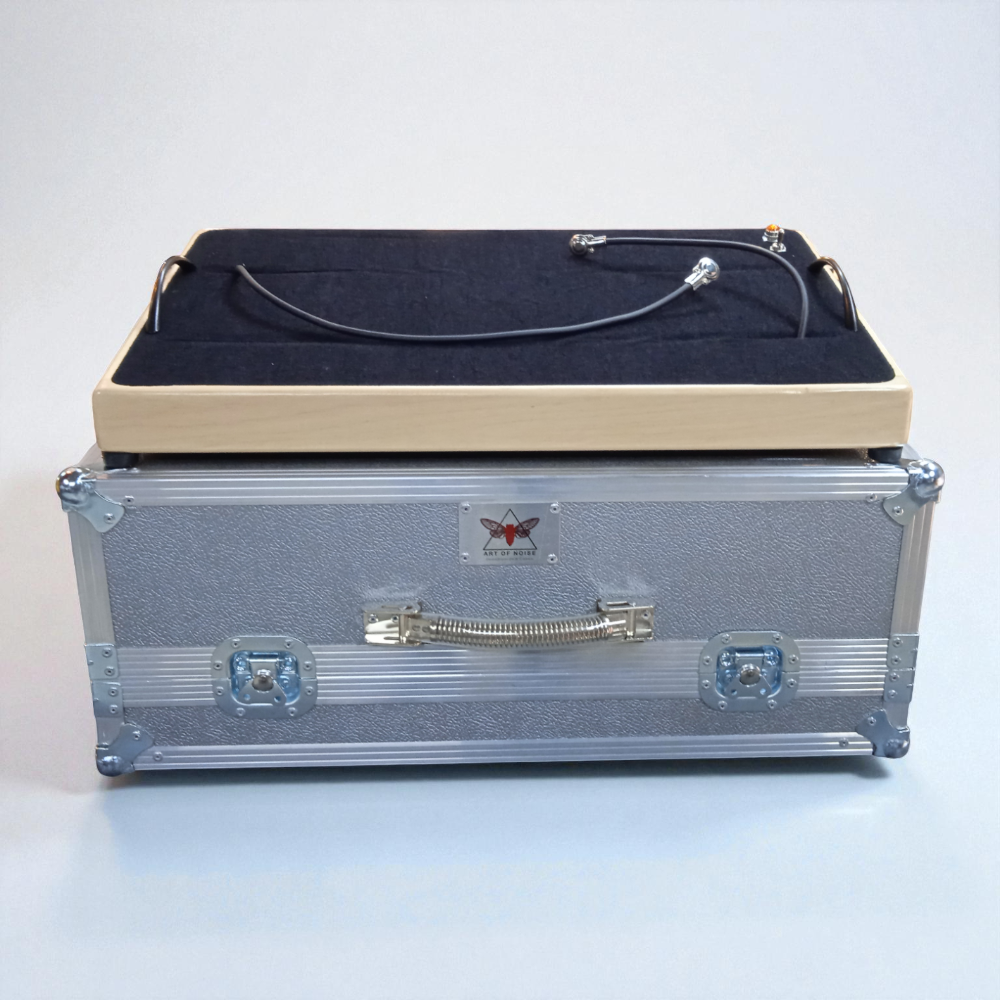

This product is the case, the pedalboard is not included. These sizes are designed around our 50 × 30, 60 × 30, 70 × 35, 70 × 40 and 85 × 40 cm pedalboards. The dimensions shown in the selector are the nominal external case-body dimensions in L × W × H format. Handles, feet, corners and other hardware may project beyond the case body.
Road Vault size range: 54 × 34 × 21.8 cm (for 50 × 30) · 64 × 34 × 21.8 cm (for 60 × 30) · 74 × 39 × 21.8 cm (for 70 × 35, by quotation) · 74 × 44 × 21.8 cm (for 70 × 40) · 89 × 44 × 21.8 cm (for 85 × 40). The 70 × 35 cm pedalboard size is quoted separately by the workshop. Custom dimensions are available for other pedalboards or rigs.
Custom builds
Select a standard Road Vault size and finish above. These sizes are matched to our pedalboards. For another brand or a custom rig, we can build the case to your dimensions. Send the complete outside dimensions, including feet, handles, connected plugs and the tallest fitted pedal, together with a photograph.
What is included
The Road Vault Touring Case in the chosen size and exterior finish, complete with black touring hardware, removable lid, carrying handle, rubber feet and protective foam lining.
